Jingqi Huaye (Beijing) Trading Co., Ltd
Product Details
Place of Origin: Beijing, China
Brand Name: HUA WEI
Model Number: 1288hv5
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: $700-1,100 / piece
Private Mold: |
Yes |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.3GHZ |
Processor Type: |
2 |
Product Name: |
1288hv5 Server 1U Rack Server |
Processor: |
2 Xeon Scalable Processors |
Memory Type: |
3200/2933/2666MHz ECC DDR4 RDIMM |
Hard Drive: |
600GB SAS 2.5'' 10K |
RAID Controller: |
RAID0/1/10/1E/5/50/6/60 |
Network Controller: |
1Gb + 2 |
Condition: |
100% Original Brand |
Dimensions: |
43*447*708mm |
Power Supply: |
550W 900W |
Warranty: |
3 Years |
Private Mold: |
Yes |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.3GHZ |
Processor Type: |
2 |
Product Name: |
1288hv5 Server 1U Rack Server |
Processor: |
2 Xeon Scalable Processors |
Memory Type: |
3200/2933/2666MHz ECC DDR4 RDIMM |
Hard Drive: |
600GB SAS 2.5'' 10K |
RAID Controller: |
RAID0/1/10/1E/5/50/6/60 |
Network Controller: |
1Gb + 2 |
Condition: |
100% Original Brand |
Dimensions: |
43*447*708mm |
Power Supply: |
550W 900W |
Warranty: |
3 Years |
Product Introduction

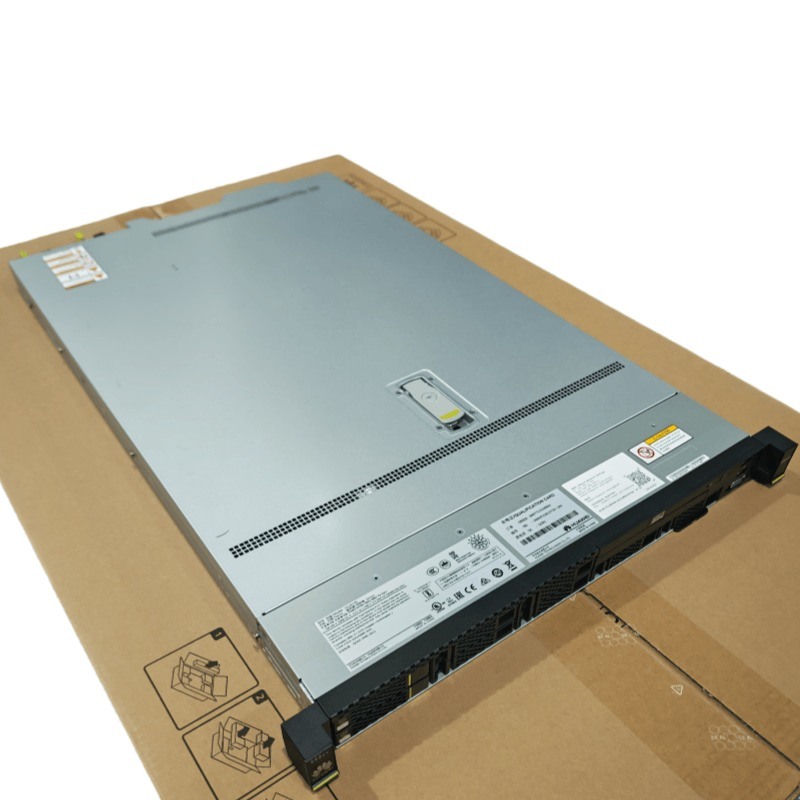

The FusionServer 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, HPC, and big data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.v
| Parameter | Description |
| Model | FusionServer 1288H V5 |
| Form Factor | 1U, 2-socket rack server |
| Processors |
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Local Storage |
Supports hot-plug hard drives and the following configuration options: 10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs 8 x 2.5-inch SAS/SATA hard drives 4 x 3.5-inch SAS/SATA hard drives Flash storage: 2 M.2 SSDs |
| RAID Support |
RAID 0, 1, 10, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports |
LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Fan Modules | 7 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Management |
BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) |
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
|
