Product Details
Place of Origin: Beijing, China
Brand Name: Intel
Model Number: 4210
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: $890-5,000 / piece
Private Mold: |
Yes |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.2Ghz |
Processor Type: |
Xeon |
Product Name: |
2288HV5 |
Form Factor: |
XFusion |
Processor: |
4210 |
Hard Drive: |
600GB SAS 2.5'' 10K |
RAID Controller: |
Raid0.1.5.10 |
Drive Bays: |
8*3.5 SATA SAS SSD |
Memory: |
32G |
Private Mold: |
Yes |
Products Status: |
Stock |
Type: |
Rack |
Processor Main Frequency: |
2.2Ghz |
Processor Type: |
Xeon |
Product Name: |
2288HV5 |
Form Factor: |
XFusion |
Processor: |
4210 |
Hard Drive: |
600GB SAS 2.5'' 10K |
RAID Controller: |
Raid0.1.5.10 |
Drive Bays: |
8*3.5 SATA SAS SSD |
Memory: |
32G |
| Parameter | Description |

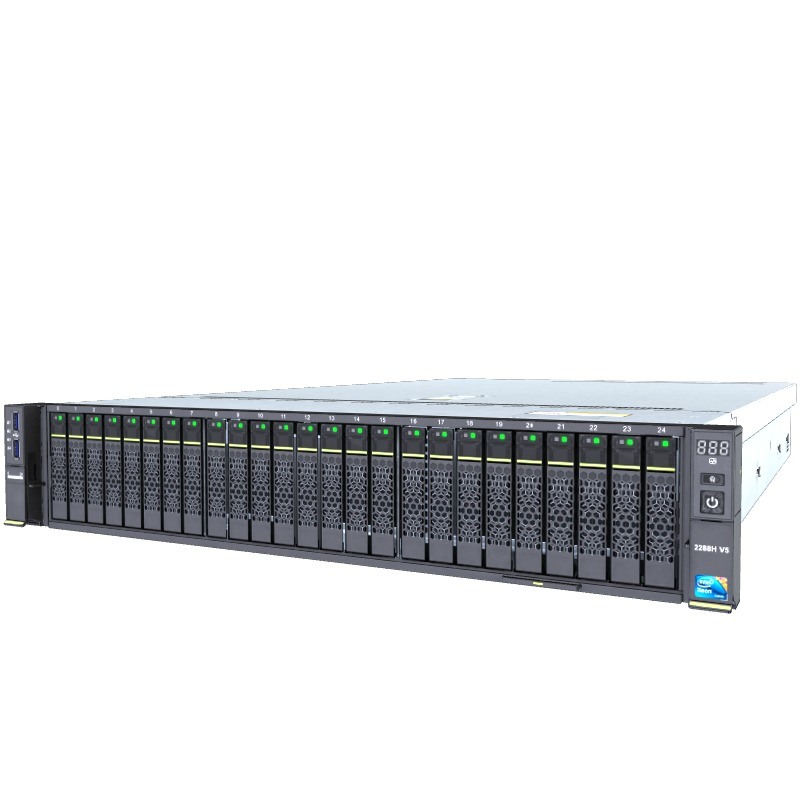

| Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors |
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Internal Storage |
Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports |
LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Heterogeneous Accelerator Card |
Up to 7 single-width half-height half-length accelerator cards Up to 2 dual-width full-height full-length accelerator cards |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Management |
BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) |
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
Q1: Are you trading company or manufacturer ?
A1: We are trading company .
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How's the delivery time?
A6: It depends on the quantity you need, 7-10 days usually.
Q7:How to ensure quality
A7: Our company is responsible for all products provided during their lifetime. For more information, please contact our customer service and we will reply to you within 24 hours.
